TA-5000 Series Product Overview

Welcome to the TA-5000 Series Product Line and
Configurations Overview.

The ThermalAir TA-5000 Series brings precise thermal testing capabilities directly to your test application, exactly localizing to where thermal cycling is required. In the lab or on the production floor, the ThermalAir TA-5000 Series configurations provide flexible test solutions for an array products and technologies.



Benchtop Environmental Chamber | Environmental Test Chamber | Thermo Cycle Chamber | Temperature Forcing System | Temperature Test | Temperature Test Chamber | Small Test Chamber

ThermalAir TA-5000 Series Temperature Test Products Overview



Thermal Forcing System

TA-5000A with Glass Cap



Thermal Air Forcing System | Temperature Forcing System | Temperature Forcing Equipment

-80°C to +225°C

ThermalAir TA-5000 Series Temperature Cycling Test Systems Overview



OUTPUT TEMPERATURE CONTROL

ThermalAir can control by user setting, the ramp rate, temperature transition time as fast as -55°C to +125°C in less than 10 seconds.

HOW DOES IT WORK

The TA-5000’s built-in air dryer and filtering system sends clean dry air stream (CDA) through its powerful internal chiller / heat exchanger to deliver hot & cold temperatures from -80°C up to +225°C.

User can control flow rate from 4 to 25 SCFM. The ThermalAir temperature test system is all self-contained. You just plug it in and it’s ready to start thermal testing your parts.
[No configuration required.]

Features & Overview



Download the Datasheets



Benchtop Environmental Chamber

TA-5000A with Clamshell & Flex Hose



Thermal Air Forcing System | Temperature Forcing System | Environmental Test Chamber | Test Chambers

-80°C to +225°C

ThermalAir Compact Benchtop Environmental Test Chamber Clamshell is for temperature testing all types of components such as Automotive Parts, Sensors, Fiber Optic Transceivers, Microwave Devices, MCM, PCB, and all type of Electronic / Non-Electronic parts.

The ThermalAir TA-5000A delivers a precise thermal stream of hot or cold dry air -80°C to +225°C capabilities directly to your test application, exactly localizing to where thermal conditioning and temperature cycle Hot & Cold is required.

ThermalAir TA-5000A Clamshell Style Benchtop Environmental Chamber can be opened and closed for quick and easy loading / unloading parts that need temperature test and thermal conditioning. Temperatures test your electronic / non-electronic parts and other devices at temperatures from -60°C to +200°C with Clamshell Style Chamber with temperature accuracy and uniformity, unmatched by large environmental temperature chambers.

Features & Overview



Download the Datasheets



Thermal Test Enclosure

TA-5000A with Hood



Temperature Testing Environmental Test Chamber

-80°C to +225°C

ThermalAir TA-5000A Compact Hood Style Chamber is for temperature testing all types of components such as Automotive Parts, Sensors, Fiber Optic Transceivers, Microwave Devices, MCM, PCB, and all type of Electronic / Non-Electronic parts and other test articles.

The ThermalAir TA-5000A delivers a precise thermal stream of hot or cold dry air -80°C to +225°C capabilities directly to your test application, exactly localizing to where thermal conditioning and temperature cycle test Hot & Cold is required.

ThermalAir TA-5000A Compact Hood Style Chamber is a thermal test enclosure that can be raised and lowered down over unit under test for quick and easy loading / unloading parts right on your test station bench test fixture that need temperature thermal conditioning. Temperature test and cycle your electronic / non-electronic parts and other test articles and devices at temperatures from -60° to +200°C with Hood Style Chamber at temperature accuracy and uniformity, unmatched by standard environmental temperature test chambers.

Features & Overview



Download the Datasheets



Small Environmental Test Chambers

TA-5000B with Clamshell Chamber & Flex Hose

Thermal Test Enclosure | Small Environmental Test Chamber | Temperature Test Chamber

-80°C to +225°C

ThermalAir Small Environmental Test Chamber is for Electronic Test at temperature all types of components such as Automotive Sensors, Fiber Optic SFP Transceivers, RF Microwave Devices, Hybrids, Semiconductor, MCM, PCB, or type Electronic Components / Non-Electronic parts.

The ThermalAir TA-5000B brings precise -80°C to +225°C thermal capabilities directly to your test application, exactly localizing to where temperature testing is required.

ThermalAir TA-5000B Clamshell Test Chamber can be opened and closed for quick and easy loading / unloading parts that need temperature test and thermal conditioning. Temperature test your electronic / non-electronic parts and other devices at temperatures from -60°C to +200°C with the Clamshell Style Test Chamber at temperature accuracy and uniformity, unmatched by large environmental test chambers.

Features & Overview



Download the Datasheets



Thermal Cycling Test System

TA-5000B with Flex Hose

-80°C to +225°C

TA-5000B with Flex Extender Air Transfer Hose provides maximum flexibility and reach, in the lab, on the benchtop, or in the production line. The unique architecture of the ThermalAir TA-5000 Creates a unprecedented performance.

Performance Plus! – Productivity!



  • Output Air Flow up to 20 SCFM from -80C to +225C
  • -55C to +125C / +125C to -55C < 10 sec
  • Ultra Stable DC Temperature Control
  • Frost Free Operation / Heated Purge / Built-in Air Dryer
  • No LN2 or CO2 / CFC Free / CE Mark

Features & Overview



Download the Datasheets

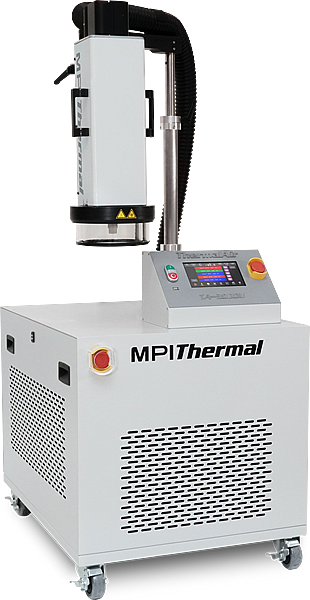

TA-3000A with Thermal Glass Cap

A smaller footprint ThermalAir System

Temperature Forcing System | Temperature Test | Temperature Cycling

-65°C to +225°C

Thermal Stream Temperature Forcing Systems

The ThermalAir TA-3000A high capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperature from -65°C to +225°C.

ThermalAir TA-3000 temperature forcing system and Environmental Test Chambers is for temperature testing all types of components such as Automotive Sensors, Fiber Optic Components, Microwave Hybrids, MCM, PCB, or type Electronic Components / Non-Electronic parts and other Test Articles.

The ThermalAir TA-3000A brings precise thermal capabilities directly to your test application, exactly localizing to where temperature testing is required.

Features & Overview



Download the Datasheets



TA-3000B with FlexExtender Hose

ThermalAir System

Thermal Air Forcing System

-65°C to +225°C

TA-3000B ThermalAir stream temperature forcing test system  is super compact at 42 inches high and 20 inches wide and is for hot and cold test temperatures down to -65°C testing with fast temperature transitions and fast ramp rates. The TA-3000B temperature range of -65°C to +225°C for testing all types of components such as Automotive Sensors, Fiber Optic Transceivers, Microwave RF Hybrids, MCM, PCB, or type Electronic Components / Non-Electronic parts and other test articles.

The ThermalAir TA-3000B brings precise thermal capabilities directly to your test application, exactly localizing to where temperature testing is required.

This compact ThermalAir TA-3000B can be interfaced with any bench top temperature chamber whether users designed or designed by MPI Thermal. These thermal enclosures bring the test closed to your UUT/DUT for quick and easy temperature test and thermal conditioning needs. Temperature test your electronic / non-electronic parts and other devices at temperatures from -65° to +225°C with a temperature accuracy and uniformity, unmatched by large environmental test chambers.

Features & Overview



Download the Datasheets



TA-1000A ThermalAir System

BenchTop Thermal Stream

Temperature Inducing System |  Temperature Testing Equipment | Temperature Testing Solutions | Temperature Testing Systems

-25°C to +200°C

ThermalAir TA-1000 Temperature Forcing System



This Desktop TA-1000 ThermalAir System is the smallest in the product line up. Temperature Testing all types of components such as Sensors, Fiber Optic Transceivers & Components, Microwave Hybrids, MCM, PCB, or type Electronic Devices / Non-Electronic parts.

The ThermalAir TA-1000 high capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperature from -25°C to +200°C.

ThermalAir TA-1000 with its desktop size can be placed on top or beneath the workstation test bench in the engineering lab or lined up on the production test floor. This ThermalAir stream is the smallest footprint in ThermalAir temperature system series. The TA-1000 Temperature Control thermal air stream system for your temperature test and thermal conditioning requirements.

Features & Overview



Download the Datasheets



TA-1000B ThermalAir System

Rack Mount Thermal Stream

Temperature Inducing System |  Temperature Testing Equipment | Temperature Testing Solutions | Temperature Testing Systems

-25°C to +200°C

ThermalAir TA-1000B Temperature Forcing System



This Rack Mount TA-1000B ThermalAir System is the smallest in the product line up. Temperature Testing all types of components such as Sensors, Fiber Optic Transceivers & Components, Microwave Hybrids, MCM, PCB, or type Electronic Devices / Non-Electronic parts.

The ThermalAir TA-1000B high capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperature from -25°C to +200°C.

ThermalAir TA-1000B with its benchtop size can be placed on top or beneath the workstation test bench in the engineering lab or lined up on the production test floor. This ThermalAir stream is the smallest footprint in ThermalAir temperature system series. The TA-1000B Temperature Control thermal air stream system for your temperature test and thermal conditioning requirements.

Features & Overview



Download the Datasheets



TC-100 Ultra Cold Gas Chiller

Cold Temperature Inducing Systems

Cold Temperature Inducing System | Cold Testing | Ambient Temperature Test

Continuous -80°C
Clean Dry Air @ 24 SCFM

TC-100 Air Chiller is an Alternative to LN2 and CO2

The MPI ThermalAir TC-100 high capacity thermal air process air chiller system. It is used for temperature testing and localized temperature inducing of continuous -80°C Clean Dry Air.

Replace LN2 and CO2 in many temperature test applications.

Unique architecture of the ThermalAir TC-100 Gas Chiller creates unprecedented performance at ultimate cold -80C while saving up to 50% on electricity/energy/power!



  • Energy Efficient Ultra-stable Mechanical Refrigeration
  • Built-in Air Drying System
  • Alternative to LN2 or CO2
  • Plug-in Anywhere Worldwide
  • No Electrical Configuration Needed

Features & Overview



Download the Datasheets



ThermalAir
Temperature Forcing System

TA-5000A with Thermal Glass Cap

ThermalAir can control by user setting, the ramp rate, temperature transition time as fast as -55°C to +125°C in less than 10 seconds.

-80°C to +225°C

TA1000 Temperature Cycling Test System | Thermal Cycling Test | Temperature Cycling Test Equipment |Thermal Cycling

Benchtop
Environmental Chamber

TA-5000A with Clamshell Test Chamber
& FlexExtender Hose

ThermalAir Compact Benchtop Environmental Test Chamber Clamshell is for temperature testing all types of components such as Automotive Parts, Sensors, Fiber Optic Transceivers, Microwave Devices, MCM, PCB, and all type of Electronic / Non-Electronic parts.

-80°C to +225°C

Thermal Air Forcing System

Thermal Test Enclosure

TA-5000A with Hood Compact Chamber

ThermalAir TA-5000A Compact Hood Style Chamber is for temperature testing all types of components such as Automotive Parts, Sensors, Fiber Optic Transceivers, Microwave Devices, MCM, PCB, and all type of Electronic / Non-Electronic parts and other test articles.

-80°C to +225°C

Thermal Test Enclosure

Portable
Environmental Test Chamber

TA-5000B with Clamshell Chamber
& Flex Hose Interface

ThermalAir Small Environmental Test Chamber is for Electronic Test at temperature all types of components such as Automotive Sensors, Fiber Optic SFP Transceivers, RF Microwave Devices, Hybrids, Semiconductor, MCM, PCB, or type Electronic Components / Non-Electronic parts.

-80°C to +225°C

Thermal Test Enclosure

TA-3000A with
Thermal Glass Cap

A smaller footprint ThermalAir System

The ThermalAir TA-3000A high capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperature from -65°C to +225°C.

-65°C to +225°C

Thermal Test Enclosure

TA-3000B with
FlexExtender Hose

ThermalAir System

TA-3000B ThermalAir stream temperature forcing test system  is super compact at 42 inches high and 20 inches wide and is for hot and cold test temperatures down to -65°C testing with fast temperature transitions and fast ramp rates. The TA-3000B temperature range of -65°C to +225°C for testing all types of components such as Automotive Sensors, Fiber Optic Transceivers, Microwave RF Hybrids, MCM, PCB, or type Electronic Components / Non-Electronic parts and other test articles.

-65°C to +225°C

Small Environmental Test Chamber

TA-1000A ThermalAir System

BenchTop Thermal Stream

This Desktop TA-1000 ThermalAir System is the smallest in the product line up. Temperature Testing all types of components such as Sensors, Fiber Optic Transceivers & Components, Microwave Hybrids, MCM, PCB, or type Electronic Devices / Non-Electronic parts.

-25°C to +200°C

Small Environmental Test Chamber

TC-100 Ultra Cold Gas Chiller

Cold Temperature Inducing Systems

TC-100 Air Chiller is an Alternative to LN2 and CO2

The MPI ThermalAir TC-100 high capacity thermal air process air chiller system. It is used for temperature testing and localized temperature inducing of continuous -80°C Clean Dry Air.

Replace LN2 and CO2 in many temperature test applications.

Continuous -80°C
Clean Dry Air @ 24 SCFM

Small Environmental Test Chamber

Thermo Cycling Test Chambers | Thermal Cycling Test System | Small Environmental Test Chambers | Small Test Chambers | Benchtop Test Chamber | Temperature Test Chamber
